ST IIS3DWB breakout board
There are two boards in the ST IIS3DWB evaluation kit they provide. First board (STEVAL-MKI208V1K) contains the IIS3DWB sensor and the second board (STEVAL-MKIGIBV2) acts as a header converter to be compatible to STEVAL-MKI109V3 pins, which is a generic evaluation board for all ST-MEMS sensors. They are connected with each other using a ribon.
Their design is based on the user requirement of mounting the accelerometer to the device via double-sided-tape or nuts and bolts. Then the ribbon cable can carry the data to the processing board.

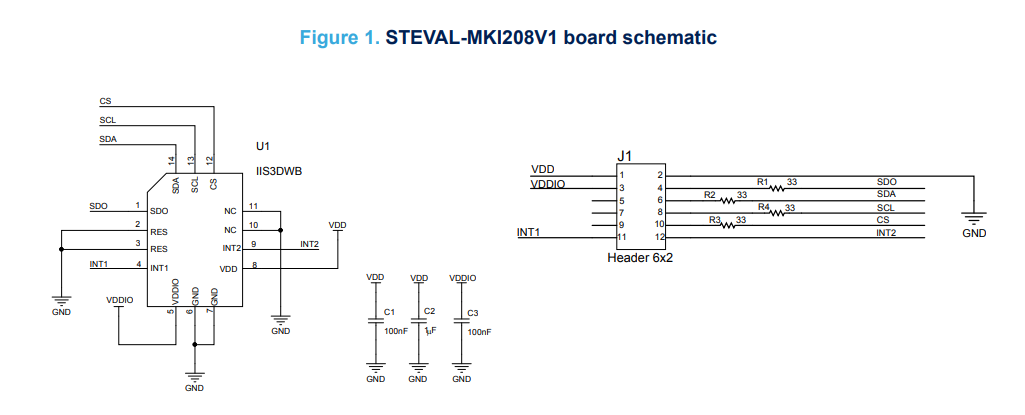

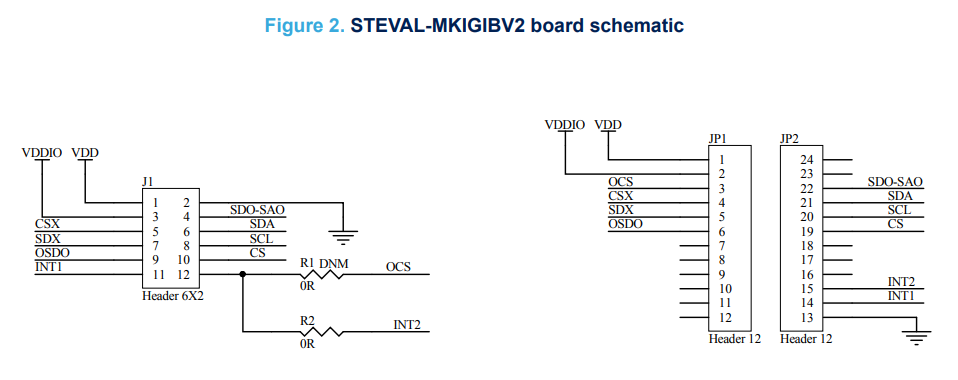

The schematic shows the components and values they are using. It seems to contain everything we need to create custom PCBs.
- STEVAL-MKI208V1K
- STEVAL-MKIGIBV2
